[k8s]쿠버네티스 대시보드(dash-board) 설치

쿠버네티스 대시보드(dash-board) 설치하기

---

□ 참고  사이트

- 쿠버네티스 대시보드 설치

GitHub - kubernetes/dashboard: General-purpose web UI for Kubernetes clusters

- 쿠버네티스 대시보드 유저 생성

GitHub - kubernetes/dashboard: General-purpose web UI for Kubernetes clusters

---

□ 쿠버네티스 설치 스크립트 다운받기

wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.6.1/aio/deploy/recommended.yaml

--2022-08-15 05:44:16--  https://raw.githubusercontent.com/kubernetes/dashboard/v2.6.1/aio/deploy/recommended.yaml
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.111.133, 185.199.108.133, 185.199.109.133, ...
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.111.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 7621 (7.4K) [text/plain]
Saving to: ‘recommended.yaml’

recommended.yaml                             100%[==============================================================================================>]   7.44K  --.-KB/s    in 0s

□  NodePort를 이용하여 외부에서 접속가능 하도록 설정

- 다운받은 recommended.yaml 파일을 열어 service를 NodePort로 변경

수정전	수정후
kind: Service apiVersion: v1 metadata:   labels:     k8s-app: kubernetes-dashboard   name: kubernetes-dashboard   namespace: kubernetes-dashboard spec:   ports:     - port: 443       targetPort: 8443   selector:     k8s-app: kubernetes-dashboard	kind: Service apiVersion: v1 metadata:   labels:     k8s-app: kubernetes-dashboard   name: kubernetes-dashboard   namespace: kubernetes-dashboard spec:   ports:     - port: 443       targetPort: 8443       notePort: 31000   selector:     k8s-app: kubernetes-dashboard     type: NodePort

- 수정된 yaml 파일  적용

kubectl -f apply recommended.yaml

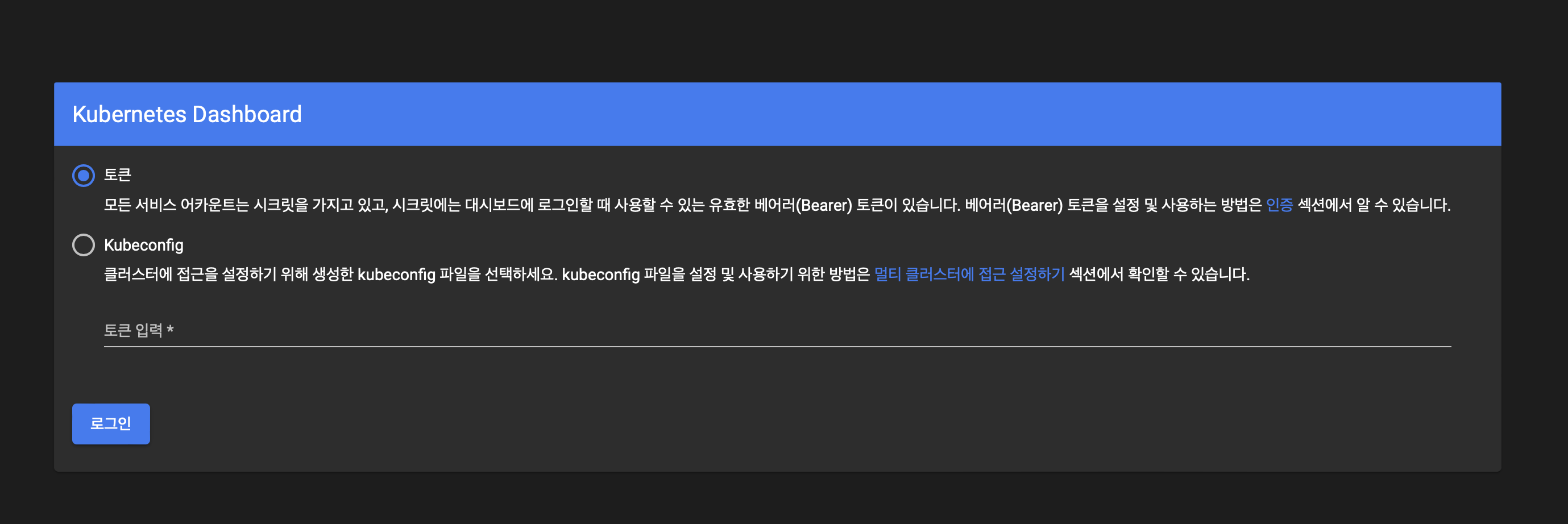

- 접속하기

https://{control-plane ip}:31000

□ Token 생성

 - service-account

#dash-board-service-account.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kubernetes-dashboard

- cluster-rolebinding

# dash-board-cluster-rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kubernetes-dashboard

- yaml 파일 적용

kubectl apply -f dash-board-service-account.yaml
kubectl apply -f dash-board-cluster-rolebinding.yaml

- Token 생성

kubectl -n kubernetes-dashboard create token admin-user

 [참고]

- 기존엔 아래와 같이 serviceaccount 생성 token이 자동 생성되어 아래의 명령어로 추출이 가능하였다. 하지만 1.22버전 부터는 수동으로 service account api token을 생성하여야 한다.

kubectl -n kubernetes-dashboard get secret $(kubectl -n kubernetes-dashboard get sa/admin-user -o jsonpath="{.secrets[0].name}") -o go-template="{{.data.token | base64decode}}"

Since 1.22, this type of Secret is no longer used to mount credentials into Pods, and obtaining tokens via the
TokenRequest API is recommended instead of using service account token Secret objects. Tokens obtained from the
TokenRequest API are more secure than ones stored in Secret objects, because they have a bounded lifetime and are not readable by other API clients. You can use the kubectl create token command to obtain a token from the
TokenRequest API.

- Manually create a service account API token



Configure Service Accounts for Pods
